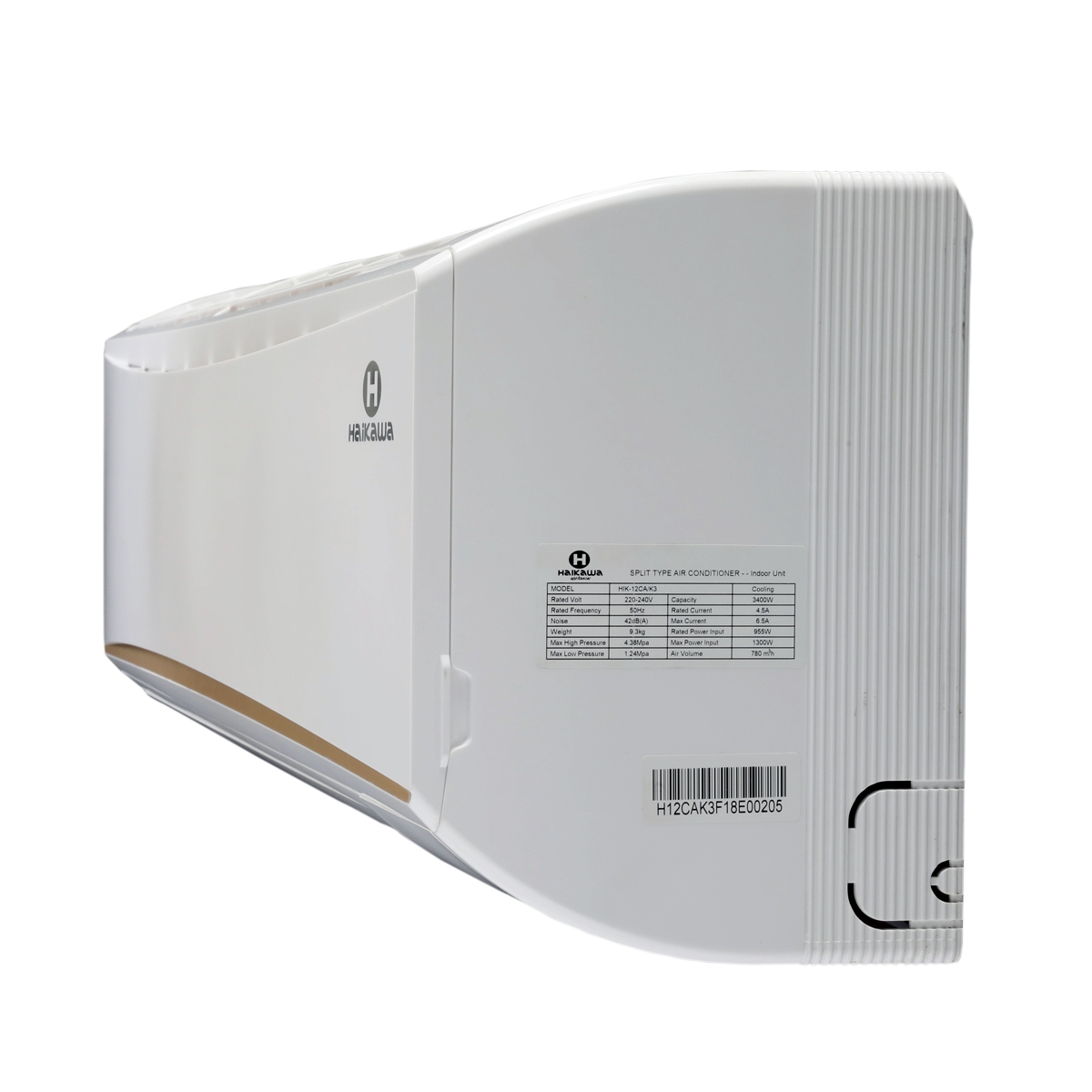

AC - Fixed Speed - 1.0 Ton ( R-32) - 3* Star - 2023 model

R32 Series

(04 Reviews) Model: HIK 12CA/K3-R32
31990 38500 17% OFF
  • 1 Yr. Full + 4 Yrs. On Compressor
Important Note:

The standard installation fee mentioned herein does not include accessory charges. Charges for any extra accessories need to be paid separately to the technician in addition to the standard installation fee

  • Split 1 Ton with non-inverter compressor room size (<120 sq. ft.)
  • 3 Star BEE Rating with Power Saving Mode
  • High Airflow
  • 100% Copper Condenser
  • Warranty: 1 year + 4 Years
  • Heavy Duty Compressor, Works @ 52 deg. ambient
  • Noice Level: 39db

3-Day Shipping

Free Pickup Today


Haikawa brings to you a range of high quality air conditioners at great value. Get higher energy savings with a 3 Star BEE Rating with Energy Saving Mode and a better than industry benchmark ISEER rating. Higher Airflow Volume allows cool air to reach all corners making it more effective in high temperatures. 100% Copper Condenser with Blue Fin coating and extended lifespan ensures that the air conditioner is protected in all weather conditions. Ideal for small sized rooms, Haikawa air conditioners have a four stage filtration system and anti-fungal function providing healthier air to breathe.

Inner-grooved Copper Tubes with Heavy duty 7mm Condenser Coil

High quality inner-grooved copper tubes increase the surface area of the inner copper wall, improving thermal conductivity by 20%-30%

High Airflow Volume

Powerful air flow of 1100m³/hr allows cool air to reach all corners making it more effective in high temperatures

Four Stage Filtration System

3Ms Micro Dust anti-bacterial Filters keeps out both visible and invisible dust and other pollutants and traps microscopic particles upto 0.3µm

100% Copper Condenser Coil

Copper condenser extends the lifespan and ensures the air conditioner is protected in all weather conditions

Blue Fin Evaporator

Blue epoxy coating on the evaporator fins of the indoor unit restricts the accumulation of condensed water and dust particles, which significantly improves the cooling performance and increases durability to withstand even extreme weather conditions

360 Degree Three Dimensional Air Delivery

360 degree air swing design allows air to reach every corner of a room within a wide angle

Multiple Flow Speeds

Multi-variable flow speeds, ensuring a more precise control and a more comfortable breeze

Precise Temperature Control

Adjusting the frequency of the compressor power supply enables more precise temperature control as well as greater comfort

Quiet Air Supply System

Large diameter perfusion fan blades raise and lower the rotation speed according to the temperature of the evaporator, thereby lowering noise levels without reducing airflow or cooling output

Anti-Fungal Function

The blower motor continues to run at a low speed for 40 seconds after the AC unit shuts down, to ensure that the indoor unit remains dry within and to prevent fungal growth

Eco-Friendly Refrigerant

The refrigerant in this AC is eco-friendly and does not harm the environment. It ensures that you get ultimate cooling but not at the cost of ecosystem

Turbo Cooling

Maximizes cooling output to rapidly cool the room

15 Meter Airflow

Superior airflow can reach up to 15m distance

Energy Saving Rotary Compressor

The Highly Efficient Rotary Compressor is designed to deliver maximum cooling while drawing less power, improving the energy efficiency

Energy Saving Mode

Auto adjusts temperature and fan speed to minimize energy consumption and maximize savings

Sleep Mode

Maintains a comfortable temperature by cutting excessive cooling and power consumption, so you sleep comfortably all night

Digital Hidden Display

Digital display integrated intelligently in the sleek body design that can be switched off for a disturbance free experience

5 Layered Anti-Rust Design

The outdoor unit is coated with 5 anti-rust layers, ensuring a shiny new look that lasts long periods

Easy to Clean Panel

The indoor unit can be detached easily for regular cleaning


In The Box 1 Indoor Unit, 1 Outdoor Unit, Inter Connecting Pipe, 1 Remote, 2 Batteries, 1 Instruction Manual, 1 Set of Screws
Brand Haikawa
Model Name HIK 12CA/K3-R32
Type Split
Capacity in Tons 1 Ton
Star Rating 3 Star
BEE Rating Year 2023 - lattest
Color White
Cooling Capacity 3400W
Compressor High EER Rotary
Remote Control Yes
Refrigerant R32
Condenser Coil Copper
Indoor W x H x D 800 x 222 x 292 mm
Indoor Unit Weight 9.3 kgs
Outdoor W x H x D 780 x 557 x 260 mm
Outdoor Unit Weight 28 kgs
Performance Features
Panel Display Hidden Display
Turbo Mode Yes
ISEER 3.56 W/W
Air Flow & Filter Features
Auto Air Swing Yes
Air Flow Direction 4 Way Direction
Anti-bacteria Filter Yes
Dust Filter Yes
Deodorizing Filter Yes
Convenience Features
Auto Restart Yes
Timer Yes
Child Lock Yes
Quiet Mode Yes
Sleep Mode Yes
Self Diagnosis Yes
Power Features
Power Requirement 230V, 50Hz
Power Consumption 955W
Operating Current 4.5A
Remote Control Features
LED Backlit Buttons Yes
Night Glow Buttons on Remote Yes
Battery Type 2 AAA Batteries
Installation Details The Installation of Air-conditioner is charged extra to customer at the time of installation and needs to be paid directly to the service engineer. Standard installation charges for split AC will be Rs. 1500/- (inclusive of taxes). Please check the offer details to find out whether free installation offer or any other special offer price is available at the time of purchase or not Standard Installation of Split Air Conditioner Covers Only: • Fixing Hole Sleeve and Cap. • Fixing the Indoor and Outdoor Unit. • Connecting Indoor and Outdoor Units Using Standard Kit Provided by Manufacturer (Standard Kit Comes Free of Cost, unless otherwise Specified). • Wrapping the Pipe with Seasoning Tape. • Connection to Stabilizer or Power Point in the Range of Power Cord Provided by Manufacture. • Temperature/Performance Check and Demo and Maintenance Tips • Supporting Customer in Masonry and Electrical. Not Covered in Installation: - • Out Door Unit Stand. • Extra Copper Wire if any. • Drain Pipe Extension if any. • Plumbing and Masonry Work. • Wiring Extension from Meter to Site, Power Point/MCB Fitting and any other Electrical Work, Carpentry Work. • Stabilizer required for the installation if available with the technician will be chargeable extra. • Dismantling/Shifting of Old ACs • Core cutting if any.
Technician Visit Details Repair Services Provide replacement to the customer in case part / product not repairable (only after replacement request approved) Authorized Service Engineer will do the following: Repair/change the defective part
Uninstallation Details The Service Team will visit the customers location, in case of Returns, Pick-up the Product, Pack and Uninstall.
Warranty Summary 1 year on Product and 5 years on Compressor
Covered in Warranty All parts, excluding Air Filter/Front Grill and Plastic Parts (after installation). The warranty covers defective materials and workmanship from the date of purchase. Beyond the first year of warranty, only compressor repair (excluding gas filled inside the compressor) will be provided free of cost for 5 years from date of purchase. Refrigerant gas is having only one year warranty
Not Covered in Warranty Parts: Air Filter/Front Grill is not covered in the warranty after installation. The warranty does not cover installation/demonstration. Accessories external to the system. Damage parts. The product is not used according to the instructions given in the manual. Defects caused by improper use as determined by the company personnel. Modification/alteration of any nature is made in the electrical circuitry or physical construction of the set. Site (premises where the product is kept) conditions that do not conform to the recommended operating conditions of the machine. Defects due tocause beyond control like lightning, abnormal voltage, Acts of God, while in transit to Service Centre or Purchaser's residence
Warranty Service Type On-site if installed by companies authorized service partner, Product Warantee is not covered if installed by 3rd party
